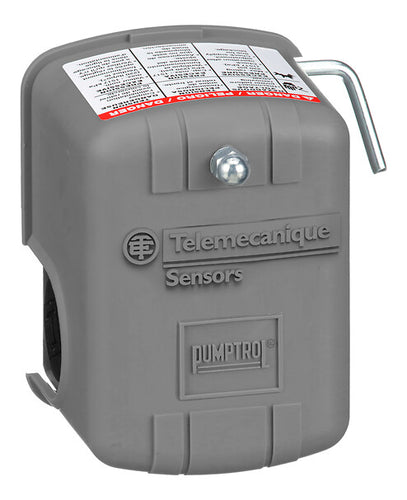

Telemecanique Sensors Pumptrol Pressure Switch 40 - 60 PSI

PRESSURE SWITCH - 30 - 50 PSI S FSG2M43050

Characteristics

Main

Range of product Telemecanique Pressure sensors XM

Pressure sensor name FSG

Electrical circuit type Power circuit

Product specific application Not applicable

Complementary

Pressure sensor type Electromechanical pressure sensor

Controlled fluid Fresh water (0-70 °C), sea water (0-70 °C)

Pressure actuator Diaphragm

Pressure switch type of operation Regulation between 2 thresholds

Scale type Adjustable differential

Setting Internal

Materials in contact with fluid Nitrile nylon 6/6 zinc plated steel

Local display Without

Enclosure material PS

Electrical connection Screw-clamp terminals, clamping capacity: 1 x 1...2 x 2 mm²

Fluid connection type G 1/4 (female) conforming to ISO 228

Operating position Any position

Terminal block type 4 terminals

Operating rate 10 CYCLE_PER_MINUTE

Terminals description ISO n°1 (1-2)NC
(3-4)NC

Environment

Standards CE IEC 60730

Protective treatment TC

IP degree of protection IP20 conforming to IEC 60529
