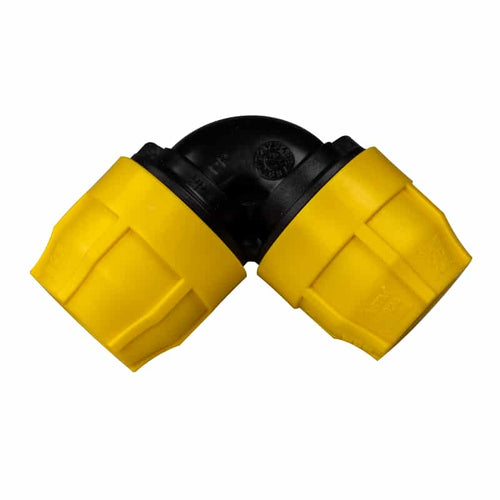

Pro-Flex Underground Gas Elbow [IPS] SDR 11

APPLICATION

The Pro-FlexTM Poly Elbow Fitting is used join together 2 MDPE Gas pipes of the same size (at a right angle.)

INSTALLATION

Product installation and system testing shall be completed by a qualified installer in accordance with NFPA 54/ANSI Z223.1 (National Fuel Gas Code), National Gas & Propane Installation Code B149.1 (Canada), state/local codes and the Pro-Flex Installation/ Training Guide.

MATERIALS

Nut and Main Body: Polypropylene O-Ring: Nitrile Spacer: Nylon Grip Ring: Acetal Stiffener: Acetal

SPECIFICATIONS

APROVED GASES: LP (PROPANE) & NATURAL GAS

MAX WORKING PRESSURE: 80 PSIG

MAX TESTING PRESSURE: 120 PSIG

CODES, STANDARDS & LISTINGS:

Codes: NFPA 54, ICC Codes [IFGC, IRC, IPC, IMC], UPC, UMC

Standards: ASTM F1924-10218

Listings: IAPMO
