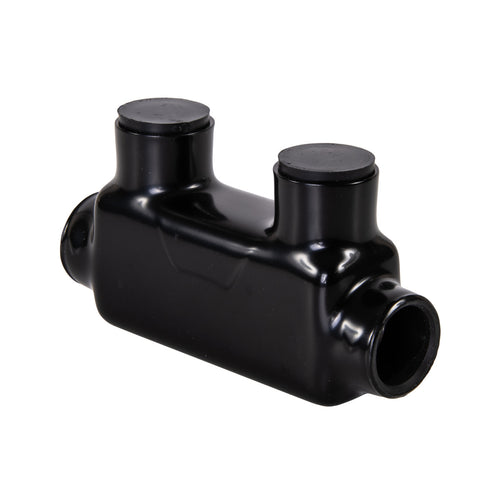

NSI 2-Port Black Multi-Tap Pre-Insulated Connector 1/0 – 14 AWG

• Insulated Mechanical Connectors

  #ISR-1/0

  Polaris Black Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.


• In-Line Wire Entry: Form secure connections between 2 conductors quickly using the in-line entry ports sized for wires between 1/0 and 14 AWG Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.

• Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip

• Removable Plugs: Each port and set screw comes with a secure plug to prevent debris from entering the insulated connector

• Pre-filled Oxide Inhibitor: Both in-line ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance

• Professional Performance: Save time and labor when splicing or reducing in-line wires made from copper or aluminum, in a wide range of applications

Product Information
Voltage Rating 600 V
Material Aluminum
Finish Plastisol Insulated
Color Black
GTIN 662381951014
UPC 662381951014
EAN 662381951014
UNSPSC 39121409
Ul Standard UL 486A/B
Wire Cable Class Class B, Class C
Conductor Cu Size Range 1/0 AWG – 14 AWG
Conductor Al Size Range 1/0 AWG – 12 AWG
Conductor Type Copper, Aluminum
Assortment Black UV Coated Pre-Insulated Connectors
