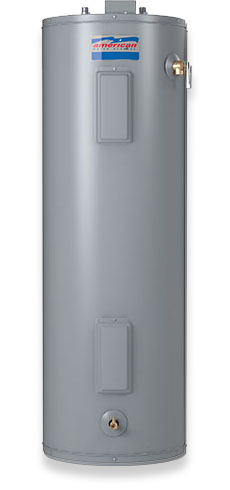

American Water Heaters 80 Gallon Light-Service Commercial Electric

Light-Service Commercial Electric - Designed for light duty commercial applications with intermittent hot water loads.

FEATURES
GLASSLINED TANK - Tank interior is coated with glass specially designed by American for water heater use.

HEATING ELEMENTS - Two 6.1 KW zinc plated copper sheathed elements are standard.

STANDARD VOLTAGES - The standard voltage is 277V single phase.

TOP MOUNTED RECESSED JUNCTION BOX

CONTROLS - Thermostat is adjustable through a range of 120º to 181ºF with a manual reset high temperature cutoff. The heater is wired for non-simultaneous single phase operation.

COREGARD™ ANODE ROD - Our anode rods have a stainless steel core that extends the life of the anode rod allowing superior tank protection for longer than standard anode rods.

ENHANCED-FLOW BRASS DRAIN VALVE - Solid brass, tamper resistant, enhanced-flow, ball type, drain valve.

FACTORY INSTALLED CSA CERTIFIED AND ASME RATED TEMPERATURE AND PRESSURE RELIEF VALVE

CERTIFIED TO UL 1453 FOR COMMERCIAL ELECTRIC WATER HEATERS

Meets the standby loss requirements of the U.S. Department of Energy and current edition of ASHRAE/IES 90.1.

6-YEAR LIMITED TANK / 1-YEAR LIMITED PARTS WARRANTY
