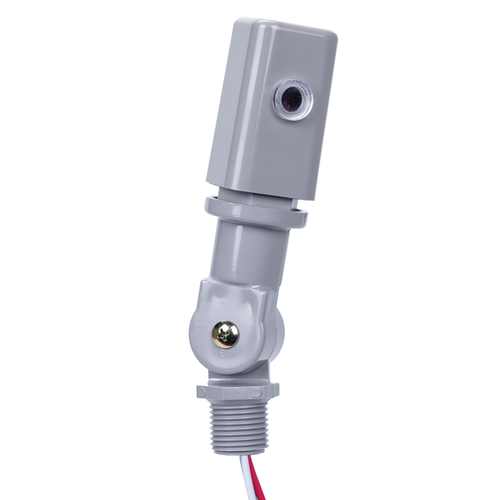

Intermatic NIGHTFOX EK Series Premium Stem and Swivel Mount Electronic Photocontrol, 120-277 V

NIGHTFOX EK Series Electronic Photocontrols are designed for permanent installation within outdoor-rated electrical enclosures, in-wall junction boxes, or lighting fixtures. This premium solution is suitable for use with high-efficiency, long-life LED luminaires. The unit mounts externally and requires a minimum enclosure aperture of 7/8" in diameter. Each control is equipped with 6" color-coded wire leads to ensure reliable and efficient installation.

Features

• Non-drift silicon light sensor with IR filter.
• DC relay with zero-crossing circuitry for extended life.
• Conformal coated PCB.
• 15-year design life.
• Exceeds 10,000 ON/OFF switching cycles.
• Fail ON mode.
• Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC).
• 255 J MOV surge protection element.
• 1⁄2"-14 NPSM threaded stem fits standard outlet boxes and wall packs for a minimum installation hole size of 7/8 inch diameter.
• #18 AWG wire leads.

Application

• Outdoor Lighting Control
