Arrowhead Brass TKC150 Tankless Hot Water Heater Kit

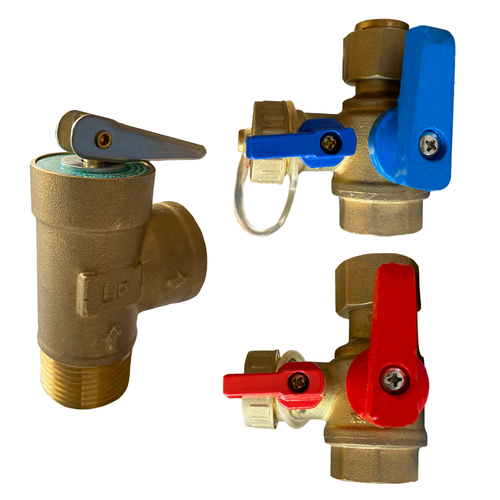

The Arrowhead TKC150 Tankless Hot Water Heater Kit makes connecting to your tankless hot water easier and more convenient with a compact design that works in tight spaces. The color-coded hot and cold water valves connect directly to the cold water inlet and the hot water outlet of your tankless hot water heater. The pressure release valve threads directly onto the 3/4″ port on the side of the hot water valve.

Features & Benefits

• Quick and easy installation
• Compact design that works in a variety of situations, including tight spaces

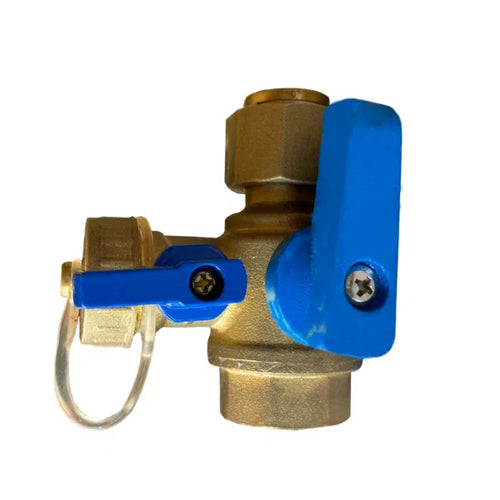

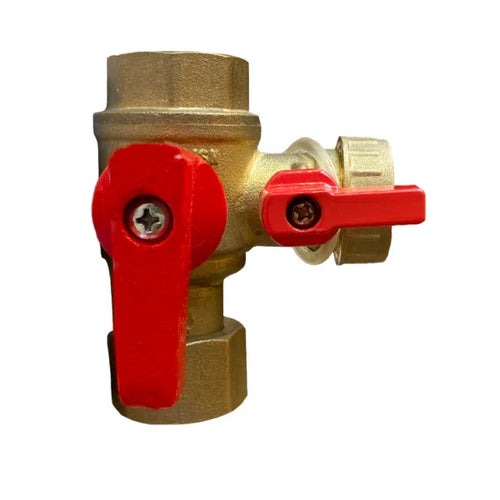

• Color-coded handles (blue and red) for easy identification of hot and cold valves
• Large drain port outlets make it easy to clean and flush the system

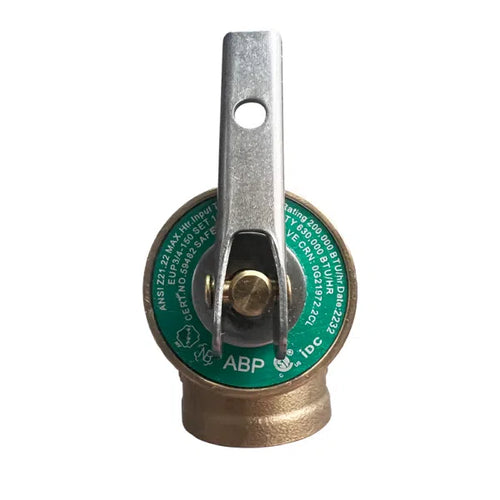

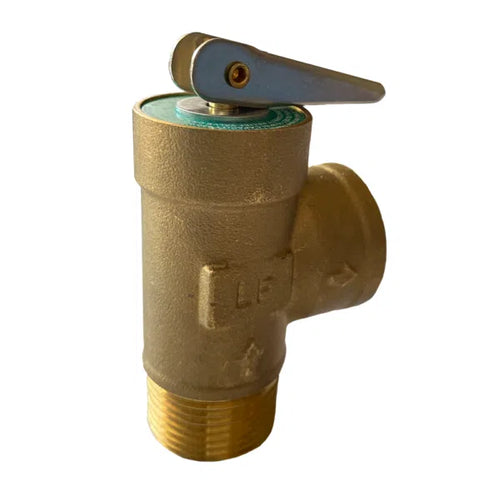

• Pressure relief valve is included with every kit
• Rated to 150 PSI / 630,00 BTU
• Pressure relief valves can be used with pipe covers and recessed boxes.
• Made of heavy-duty lead-free brass

Specifications

• Max inlet pressure 200 PSI
• Max temperature 200° F (93° C)
• Relief pressure 150 PSI
• Connection thread NPT 3/4”
• Ball valve connections 3/4”
• Certified NSF/ANSI 372, ASME IV & ANSI Z21.22•CSA4.4
